Product Overview

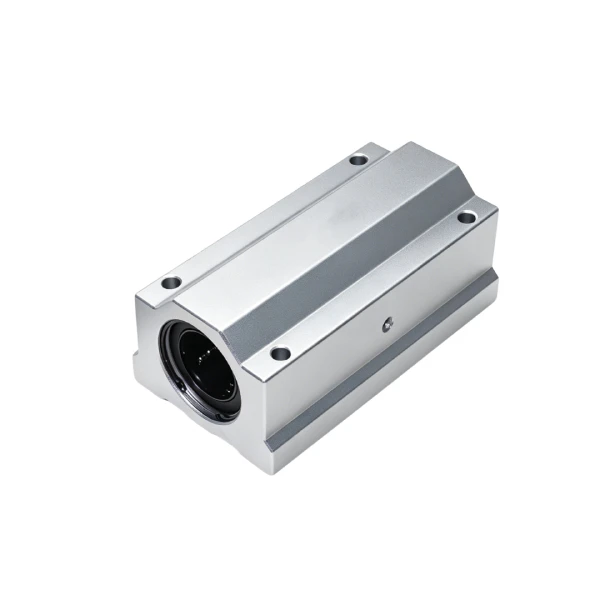

The SCS16LUU is a long type enclosed linear bearing block designed for 16mm linear shafts. As the extended-body version of the SCS16UU, it delivers a longer contact length between the housing and the LM16UU×2 bearing units inside, providing enhanced load distribution and improved running stability across the full stroke.
The enclosed aluminum housing has no clamping mechanism - the block slides freely along the shaft without any locking function. This makes the SCS16LUU 16mm bearing block the preferred choice for applications requiring smooth, unobstructed linear travel.
Key Specifications
Product drawing
Parameter | Value |
|---|---|
Model | SCS16LUU |
Shaft Diameter | 16mm |
Type | Long Type (Extended Body) |
Built-in Bearing | LM16UU×2 |
Housing Material | Aluminum Alloy |
Locking Function | None (Free Sliding) |
Dynamic Load Rating | 774 N |
Static Load Rating | 1180 N |
Weight | 0.39 kg |
Main Dimensions (mm)
| T | h | E | W | L | F | G | B | C | K | S₁ | S₂ | L₁ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 19 | 25 | 50 | 85 | 38.5 | 32.5 | 36 | 60 | 7 | M5 | 4.3 | 12 |
Product Features
Long Type Enclosed Housing
The SCS16LUU adopts a closed-body aluminum housing that fully encases the dual LM16UU bearing units. The longer body length - 85mm versus the standard SCS16UU - increases the effective bearing span, reducing tilt and improving motion linearity under load.
Free-Sliding Linear Motion
Do not use double sided tape to attach light panels to dusty, damp, wallpapered or uneven surfaces such as brick, unfinished wood or rough concrete walls;.
Dual LM16UU Bearing Configuration
Two LM16UU linear bearings are pre-installed inside the SCS16LUU block, delivering a combined dynamic load capacity of 774N and static load capacity of 1180N. The dual-bearing arrangement supports higher radial loads than a single-bearing housing of the same shaft size.
Mounting Compatibility
Four bolt holes on the housing base (M5, S₁ pattern) allow direct bolt-down mounting to linear motion stages, machine frames, and custom fixtures. Shaft compatibility: Ø16mm precision linear shaft.
SCS16LUU 16mm Bearing Block – Applications
The SCS16LUU 16mm bearing block is widely used in:
CNC router gantry and axis assemblies
3D printer X/Y/Z linear motion systems
Automated packaging and conveying equipment
Pick-and-place robotic arms
Textile machinery and printing equipment
General industrial linear guidance systems
Why Choose SQ Bearing SCS16LUU
Zhejiang SQ Bearing Manufacturing Co., Ltd. has produced linear bearing blocks and linear motion components since 2007. The SCS16LUU is manufactured under ISO 9001 certified quality management, with in-process inspection at every production stage - incoming material, machining, assembly, and final output - covering salt spray testing, hardness measurement, and life cycle testing with precision equipment.
SQ Bearing holds self-operated export rights and supplies customers across Southeast Asia, Europe, the Middle East, and South America. Custom packaging, logo printing, and OEM labeling are available. Sample orders are accepted.
