Product Description
The SCE16VUU is a 16mm European standard (LME series) SCE linear slider block with bearings, housing an internal LME16UU linear bearing for smooth, precise linear motion along round shafts. As a new SCE bearings linear slider block in SQ's product range, the SCE16VUU features an extended block length (L=32.5mm), delivering enhanced load distribution and greater rigidity - ideal for applications demanding higher stability and longer bearing contact.
Whether used in precision automation or as an SCE linear slider block for tools and machining systems, this unit is manufactured under ISO 9001 quality management standards with ROHS-compliant materials, engineered for reliable performance across demanding industrial environments.
Key Features
European Standard (LME Series)
Compatible with LME16UU linear bearings and European-metric shaft systems
Extended Block Length
L=32.5mm for improved contact area and load capacity vs. standard SC series
High-Precision Aluminum Housing
Lightweight yet rigid, CNC-machined for dimensional accuracy
Dual Rubber Seals (UU)
Effective dust and contamination protection for extended service life
Low Friction, High Speed
Ball-recirculation design ensures smooth, quiet operation
Easy Mounting
4-bolt flange pattern for secure, straightforward installation
Specifications
| Parameter | Value |
|---|---|
| Model | SCE16VUU |
| Shaft Diameter (d) | 16 mm |
| Internal Bearing | LME16UU |
| Standard | European Standard (LME Series) |
| h | 19 mm |
| D | 25 mm |
| W | 50 mm |
| H | 38.5 mm |
| G | 32.5 mm |
| A | 9 mm |
| B | 36 mm |
| E | 7 mm |
| Mounting Bolt (S1×e) | M5×12 |
| S₂ | 4.3 mm |
| C | 11.75 mm |
| L (Block Length) | 32.5 mm |
| Dynamic Load Rating (C) | 774 N |
| Static Load Rating (C₀) | 1180 N |
| Weight | 110 g |

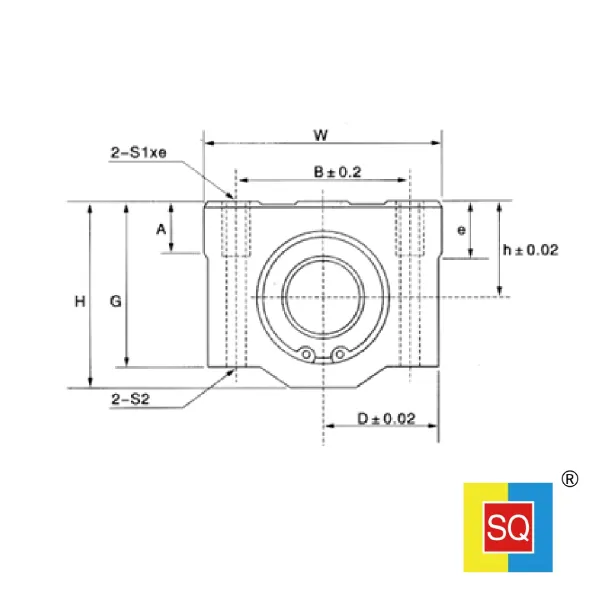

Product drawing
SC...VUU Series - Full Size Range
| Unit Designation | h | D | W | H | G | A | B | E | S1×e | S₂ | C | L | Dynamic CN | Static C₀N | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC8VUU | 11 | 17 | 34 | 22 | 18 | 6 | 24 | 5 | M4×8 | 3.4 | 7.7 | 15.3 | 274 | 392 | 27 |
| SC10VUU | 13 | 20 | 40 | 26 | 21 | 8 | 28 | 6 | M5×12 | 4.3 | 9.75 | 20.0 | 372 | 549 | 53 |
| SC12VUU | 15 | 21 | 42 | 28 | 24 | 8 | 30.5 | 5.75 | M5×12 | 4.3 | 10.25 | 21 | 510 | 784 | 60 |
| SC13VUU | 15 | 22 | 44 | 30 | 24.5 | 8 | 33 | 5.5 | M5×12 | 4.3 | 10.25 | 20.6 | 510 | 784 | 64 |
| SCE16VUU | 19 | 25 | 50 | 38.5 | 32.5 | 9 | 36 | 7 | M5×12 | 4.3 | 11.75 | 32.5 | 774 | 1180 | 110 |
| SC20VUU | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 | M6×12 | 5.2 | 13.7 | 28.1 | 882 | 1370 | 144 |
| SC25VUU | 26 | 38 | 76 | 51.5 | 42 | 12 | 54 | 11 | M8×18 | 7 | 18.7 | 38 | 980 | 1570 | 340 |
| SC30VUU | 30 | 39 | 78 | 59.5 | 49 | 15 | 58 | 10 | M8×18 | 7 | 20.45 | 41.5 | 1574 | 2740 | 424 |
| SC35VUU | 34 | 45 | 90 | 68 | 54 | 18 | 70 | 10 | M8×18 | 7 | 22.7 | 45.5 | 1670 | 3140 | 626 |
| SC40VUU | 40 | 51 | 102 | 78 | 62 | 20 | 80 | 11 | M10×25 | 8.7 | 28.2 | 56.4 | 2160 | 4020 | 1000 |
| SC50VUU | 52 | 61 | 122 | 102 | 80 | 25 | 100 | 11 | M10×25 | 8.7 | 34.45 | 68.9 | 3820 | 7940 | 2100 |
Applications
The SCE16VUU is a versatile SCE linear slider block with bearings widely used across industries where precise, low-friction linear motion is required:
Industrial Automation
Robotic arms, pick-and-place systems, linear actuators
CNC & Machine Tools
As an SCE linear slider block for tools, it serves axis slides, tool carriages and precision positioning stages
Packaging Machinery
Conveyor guides, filling and sealing equipment
Medical Equipment
Diagnostic instruments, laboratory automation devices
Textile & Printing Machinery
Feed mechanisms, guide assemblies

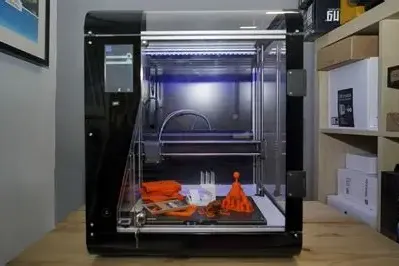

3D Printers & Electronics Assembly
Motion platforms, gantry systems
Why Choose SQ SCE16VUU?
As a new SCE bearings linear slider block option from SIQIANG (SQ), the SCE16VUU is backed by over 17 years of precision linear motion manufacturing experience, headquartered in Lishui, Zhejiang. Our SCE16VUU benefits from:

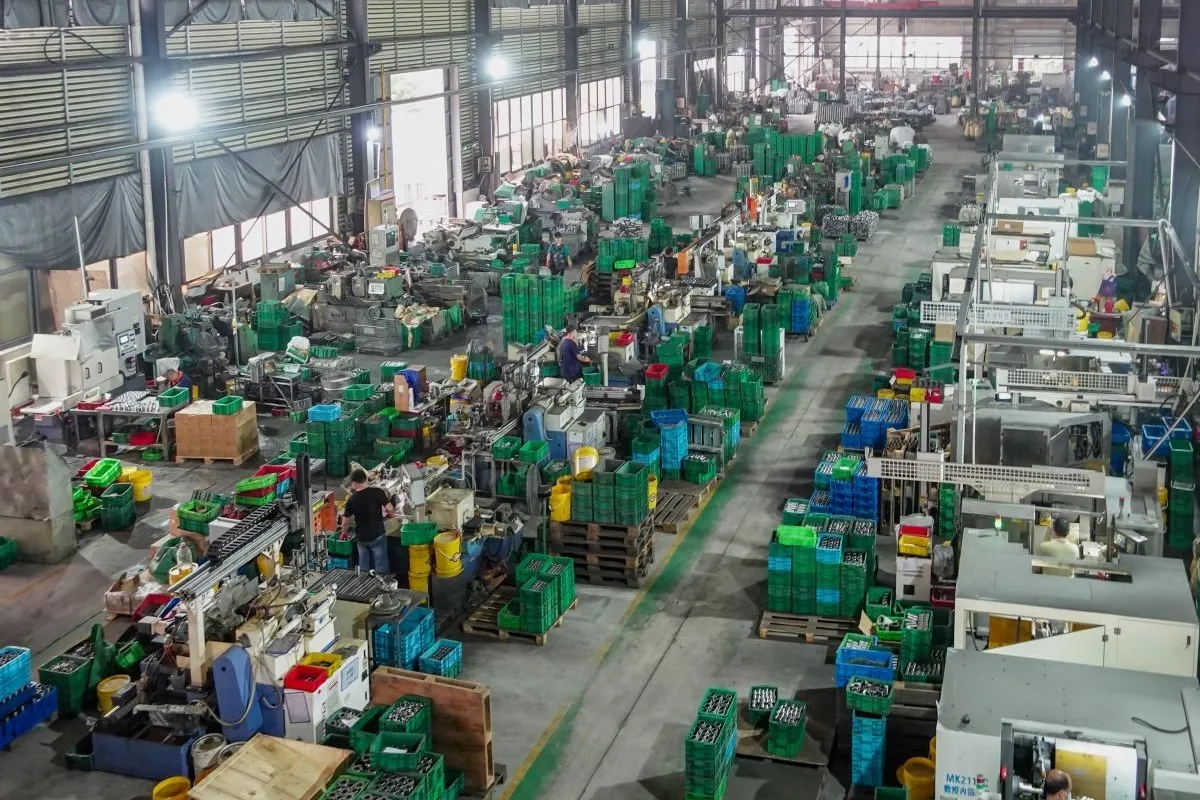

In-house CNC production
126 CNC lathes + 52 CNC grinding machines ensuring dimensional consistency
Rigorous quality inspection
Salt spray testing, hardness testing, life cycle testing on every batch
ROHS & REACH compliant
Safe for global export markets including EU, North America, Southeast Asia
OEM/ODM available
Custom housing dimensions, seals, packaging and branding upon request
12-month warranty
Full after-sales support with replacement parts available
SCE16VUU Manufacturer-SQ

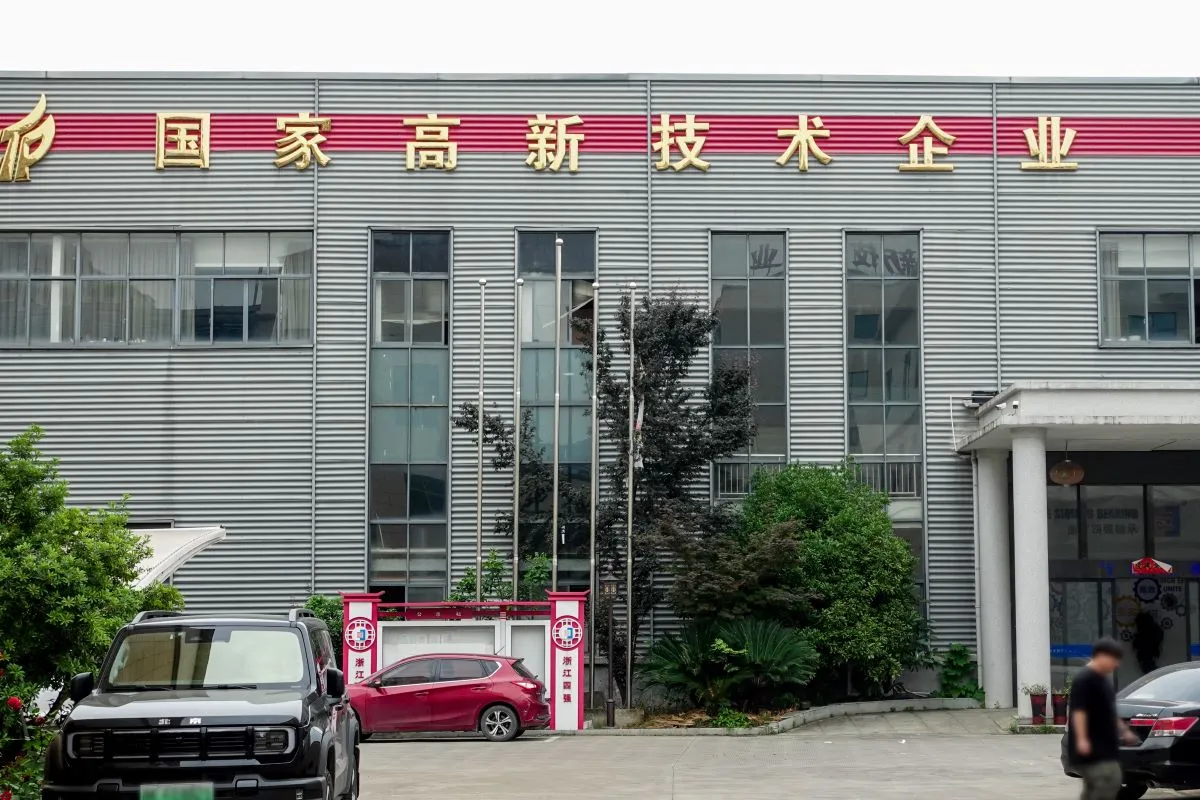

Zhejiang SQ Bearing Manufacturing Co., Ltd. has been producing precision linear motion components since 2007 from its 19,800 m² facility in Lishui, Zhejiang, China. ISO 9001 certified and recognized as a Lishui City Trustworthy Enterprise, the company exports under the SQ brand to Southeast Asia, Europe, Africa, and the Americas. OEM packaging, custom seals, and sample prototyping are available for B2B buyers.
