Product description

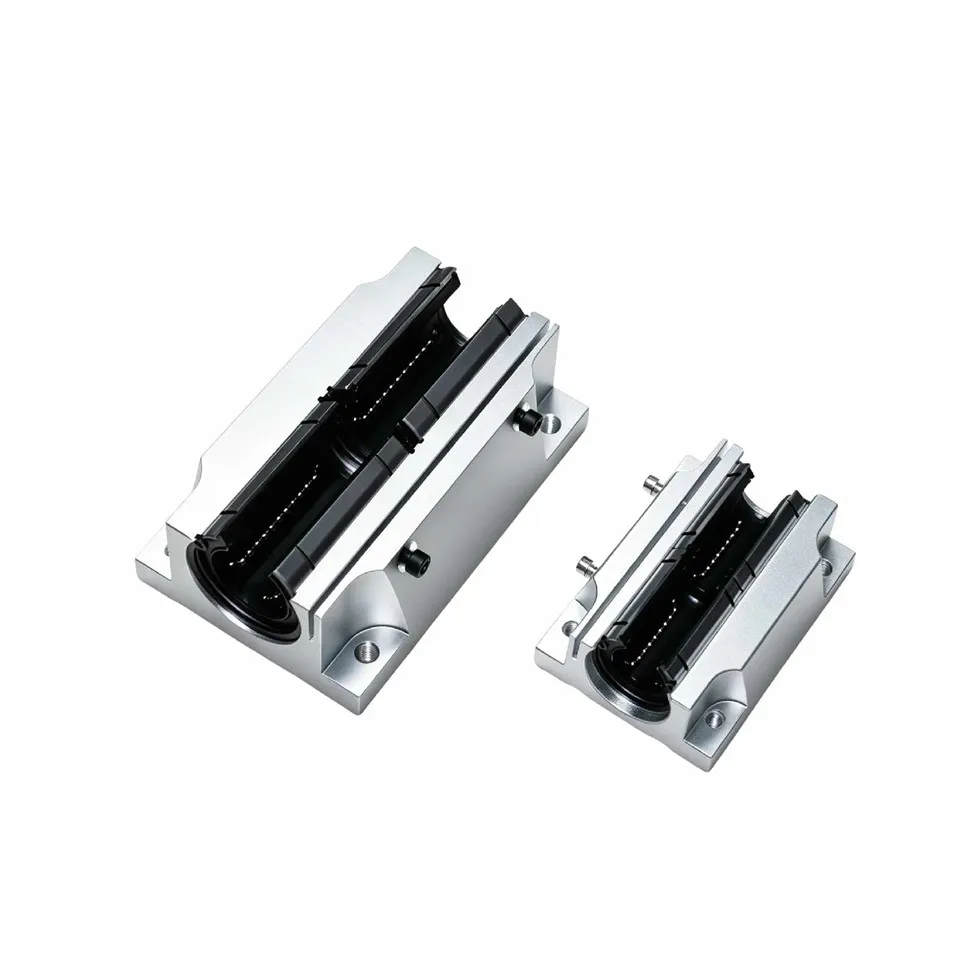

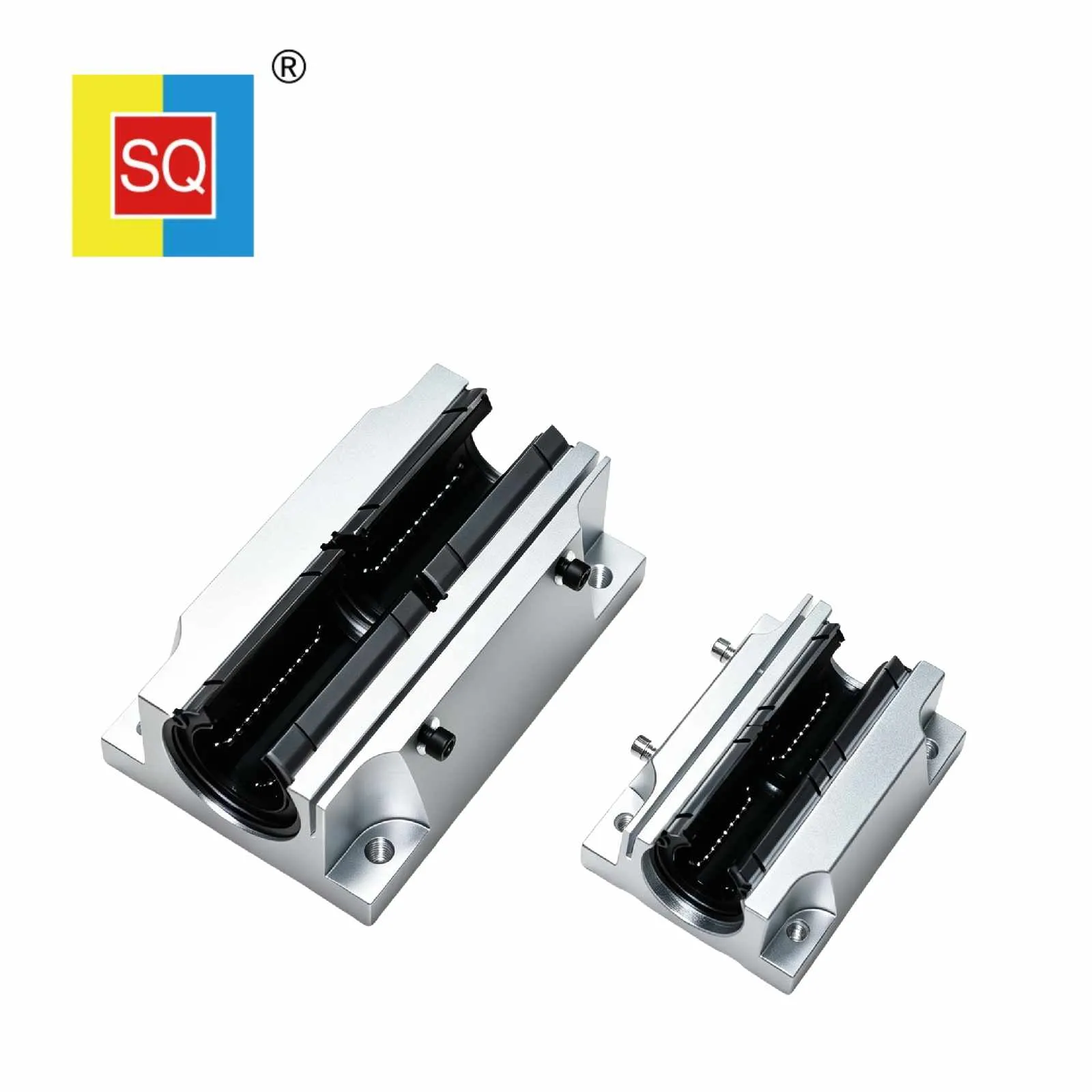

The TBR16LUU is an open-type square flange linear bearing block designed for Ø16 mm linear shafts. The long (LUU) version offers an extended contact length compared to standard (LUU vs LU), delivering higher moment load capacity and improved guidance accuracy - making it the preferred choice for machine tool tables, gantry systems, pick-and-place automation, and any application where rigidity under eccentric loads is critical.
Manufactured at Zhejiang SQ Bearing's 19,800 m² facility with 100+ CNC grinding machines, each unit passes through a rigorous ISO 9001-certified inspection process before shipment.
Technical specifications
| Support Designation | Shaft Dimensions | Basic load rating | Dimensions(mm) | Basic load rating | Weight (g) | ||||||||||||
| Dynamic CN | Static CoN | W | G | A | M | S1 | J | K | E | h | h1 | θ | Dynamic CN | Static CoN | |||
| TBR16LUU | Φ16 | 780 | 980 | 62 | 26 | 8 | 85 | M5 | 50 | 60 | 31 | 18 | 10 | 80° | 392 | 490 | |
| TBR20LUU | Φ20 | 1568 | 2352 | 68 | 31 | 10 | 96 | M6 | 54 | 70 | 34 | 21 | 10 | 60° | 784 | 1176 | |
| TBR25LUU | Φ25 | 3136 | 4704 | 82 | 41 | 12 | 130 | M8 | 65 | 100 | 41 | 28 | 11.5 | 50° | 1568 | 2352 | |
| TBR30LUU | Φ30 | 3528 | 5880 | 91 | 48 | 12 | 140 | M8 | 75 | 110 | 45.5 | 33.5 | 14 | 50° | 1764 | 2940 | |
Key features
Long contact length
LUU body provides higher moment load capacity vs standard LU
Open-type design
Easy mounting onto supported round rail without shaft removal
ISO 9001 certified
Every unit inspected under strict QC protocol at our Lishui factory
Custom OEM packaging
Private-label cartons, bags, and logo branding available
Packaging
All products are packed in a three-layer structure by default. Every layer can be customized for OEM / private-label orders.
Anti-rust treatment
Anti-rust oil applied to each unit before packing
Inner: plastic bag
Individual poly bag; custom logo / branding printable
Mid: cardboard box
Branded or plain; custom color box available
About Zhejiang SQ Bearing
Zhejiang SQ Bearing Manufacturing Co., Ltd. (est. June 19, 2007) is a high-tech enterprise headquartered at No. 97 Xianxia Road, Liandu District, Lishui, Zhejiang, China. Since its founding, the company has focused exclusively on linear motion components, developing the SQ brand into a trusted name in global industrial markets.

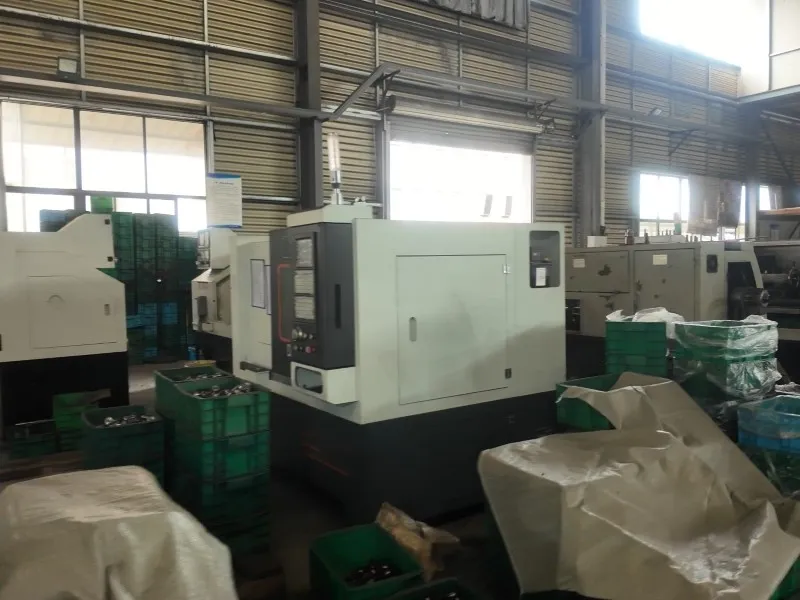

The 30-mu (≈19,800 m²) facility is equipped with over 100 CNC lathes and CNC grinding machines. A team of more than 100 skilled technicians and engineers ensures consistent dimensional accuracy and surface finish across every production batch. As a vice-chairman member of the Lishui Rolling Functional Components Association, SQ is deeply integrated into the regional industrial ecosystem.
Mission
Superior products, honest service
Company spirit
Unity · Dedication · Innovation · Courage
Core values
Benefit employees, grow the business, serve society
Service philosophy
Sincerity first - your needs are our priority
Products Description
shipping from
Lishui, Zhejiang, China - nearest port: Ningbo / Shanghai
Air freight
5–7 business days to most destinations; recommended for samples & urgent orders
Sea freight
Cost-effective for bulk orders; lead time varies by destination
Express courier
DHL / FedEx / UPS available; tracking provided
Trade terms
FOB Ningbo / EXW Lishui; other Incoterms on request
Export licence
Company holds its own export rights; full customs docs provided
FAQ
Q: What is the difference between TBR16LU and TBR16LUU?
A: LUU denotes the "long" variant, which has a greater overall bearing length than LU. The extended body accommodates more ball rows, resulting in a higher dynamic load rating and better resistance to moment (tilting) loads - recommended when the supported load has an offset from the bearing centerline.
Q: Which shaft diameter is compatible?
A: The TBR16LUU is designed exclusively for Ø16 mm linear shafts (optical axis / linear guide shaft). For best performance, use an h6-tolerance hardened shaft (HRC 58–64) with a surface finish of Ra 0.4 µm or better. SQ also supplies matching Ø16 mm optical axis - contact us to order as a matched set.
Q: Can you produce under our brand / OEM label?
A: Yes. We accept full OEM customization: custom logo on the bearing, branded plastic bags, printed cardboard boxes, and outer cartons. Sample proofing is provided before mass production. Contact our sales team with your design files.
Q: How should the bearing be lubricated and maintained?
A: How should the bearing be lubricated and maintained?
Q: What is the warranty and after-sales policy?
A: All SQ bearings carry a 12-month warranty from date of shipment against manufacturing defects. We will replace defective components free of charge. Installation video tutorials and assembly guides are available upon request.
