Products Description

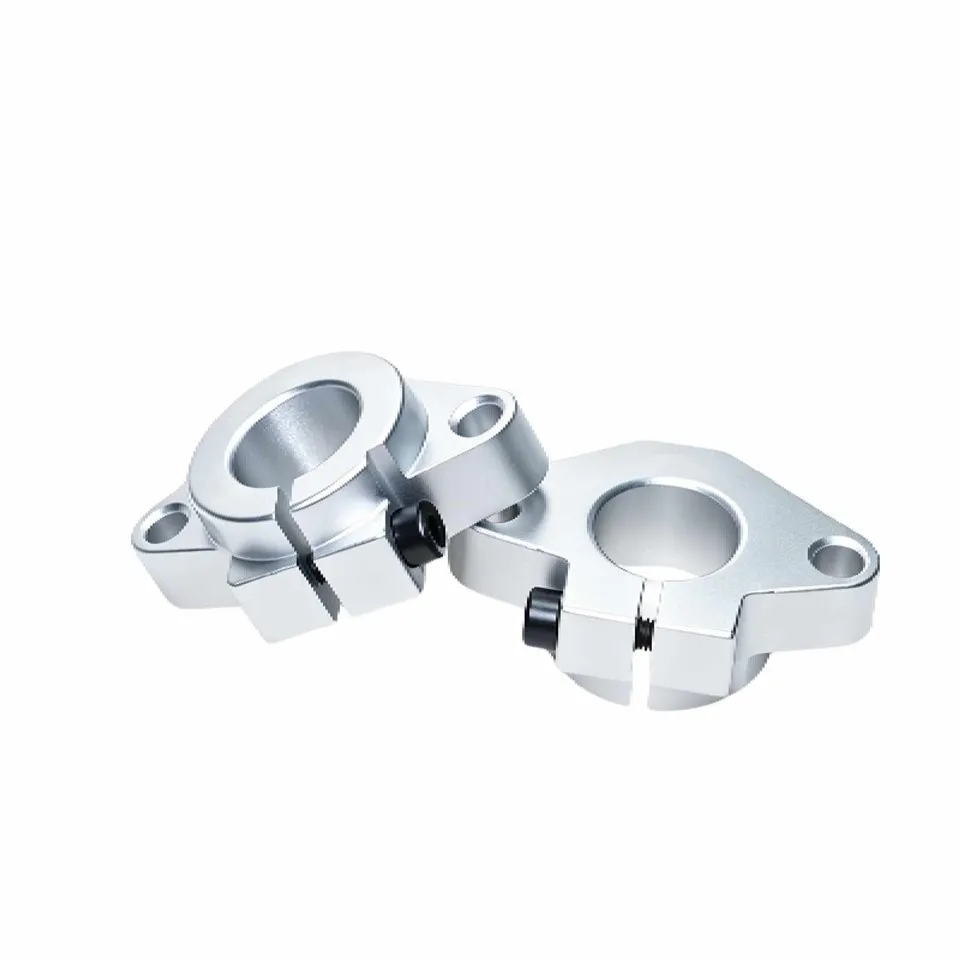

The aluminum shaft support unit SHF16 is a flat-mount aluminum shaft support unit engineered to hold and align 16mm optical shafts in linear motion assemblies. Its split-clamp design allows tool-free shaft insertion and secure locking, ensuring zero-play alignment across the full travel range of your linear system.
Manufactured by Zhejiang SQ Bearing Co., Ltd. - a high-tech enterprise founded in 2007 with over 100 CNC and grinding machines across 19,800 m² of production floor - the SHF16 is backed by ISO 9001 quality management processes and exported to customers across Southeast Asia, Europe, Africa, and South America.
Specifications
| Bearings number | Shaft diametre | Dimensions(mm) | Locking bolt | Clamping bolt | Weight (g) | ||||||
| W | L | T | F | G | B | S | |||||
| SHF10 | 10 | 43 | 10 | 0 | 24 | 20 | 32 | 5.5 | M4 | M5 | 13 |
| SHF12 | 12 | 47 | 12 | 8 | 28 | 25 | 36 | 5.5 | M4 | M5 | 20 |
| SHF13 | 13 | 47 | 12 | 8 | 28 | 25 | 36 | 5.5 | M4 | M5 | 20 |
| SHF16 | 16 | 50 | 16 | 10 | 31 | 28 | 40 | 5.5 | M4 | M5 | 27 |
| SHF20 | 20 | 60 | 20 | 12 | 37 | 34 | 48 | 7 | M5 | M6 | 40 |
| SHF25 | 25 | 70 | 25 | 15 | 42 | 40 | 56 | 7 | M5 | M6 | 60 |
| SHF30 | 30 | 80 | 30 | 18 | 50 | 46 | 64 | 9 | M6 | M8 | 110 |
| SHF35 | 35 | 92 | 35 | 22 | 58 | 50 | 72 | 12 | M8 | M10 | 380 |
| SHF40 | 40 | 102 | 40 | 26.7 | 67 | 56 | 80 | 12 | M10 | M10 | 510 |
| SHF50 | 50 | 122 | 50 | 29 | 83 | 70 | 96 | 14 | M12 | M12 | 890 |
| SHF60 | 60 | 140 | 60 | 35 | 95 | 82 | 112 | 14 | M12 | M12 | 1500 |
Features & Benefits
Split-clamp bore design
Top-slot clamp allows quick shaft insertion and precise tightening without disassembly of the linear unit.
High-rigidity aluminum body
Lightweight yet structurally rigid aluminum alloy body minimizes vibration-induced deflection in high-speed reciprocating systems.
Precise bore tolerance
Machined to tight dimensional tolerances for consistent shaft-to-support concentricity - critical for smooth linear bearing travel.
Dual-bolt flat base mount
Two-point symmetric bolt pattern distributes mounting load evenly and simplifies alignment to frame structures and extrusion rails.
Corrosion-resistant finish
Surface treatment ensures resistance to oxidation and light chemical exposure in typical factory automation environments.
Custom branding available
OEM laser engraving, custom packaging (cartons, labels, retail boxes) and sample prototyping available on request.
Applications
Typical Use Cases
Industrial automation
Cartesian robots, gantry systems, pick-and-place units
Printing & packaging
Shaft positioning in web-fed printing and blister pack lines
Textile machinery
Winding, feeding, and tensioning axis support structures
Medical equipment
Low-contamination aluminum body suits cleanroom linear stages
Electronics manufacturing
PCB drilling, SMT placement, and AOI scanning rail systems
CNC & machine tools
Auxiliary axis shaft support in milling and routing machines
Packaging & Shipping
From our factory floor to your door
- Anti-rust protection：Each aluminum shaft support unit SHF16 is coated with anti-rust oil before packing to protect precision surfaces during transit and storage.
- Inner packaging：Individually wrapped in sealed plastic bags. Optional retail box available - ideal for branded resale or kitted assemblies.
- Outer carton：Packed into corrugated export cartons, quantity per carton confirmed at order. Custom-printed cartons available.
- OEM branding：Custom logo, label design, retail box, and carton printing available. Share your artwork and we'll handle the rest.
Why Choose SQ
Zhejiang SQ Bearing - Your Reliable Partner
17+
Years in production
Founded 2007. Specialized in linear motion components since day one.
4
Export continents
Active customers in Southeast Asia, Europe, Africa, and South America.
100+
CNC & grinding machines
19,800 m² facility with industry-leading numerical-control equipment.
ISO
9001 certified QMS
Strict incoming-material inspection and multi-stage QC on every batch.
SQ is a registered trademark of Zhejiang SQ Bearing Manufacturing Co., Ltd., headquartered at No. 97 Xianxia Road, Liandu District, Lishui City, Zhejiang Province, China. As a member of the Lishui Rolling Functional Components Industry Association, we maintain a reputation for zero-tolerance quality standards and honest service.
FAQ
Q: What shaft diameter does the SHF16 support?
A: The SHF16 is designed for 16mm diameter optical shafts (linear round shafts). If you require a different bore size - such as SHF8, SHF10, SHF12, SHF20, or SHF25 - please contact us. Custom bore sizes are available on request.
Q: Can I order samples before placing a bulk order?
A: Yes. We support sample prototyping and provide real-product photography for evaluation. Sample lead time and cost will be confirmed by our team based on your requirements. Contact us via the quote form.
Q: Is OEM / private label packaging available?
A: Yes. We support custom packaging including plastic bags, retail boxes, outer cartons, and custom logo printing. Brand-specific box and carton design is also available. Please share your requirements when requesting a quote.
Q: What is the warranty policy?
A: All SQ products come with a 12-month quality warranty from date of shipment. We recommend applying anti-rust oil during storage and regular lubrication during operation. Damaged components within the warranty period will be replaced free of charge subject to inspection.
Q: Do you provide installation guidance?
A: Yes. We can provide step-by-step assembly tutorials and installation video guides. Dimensional drawings and CAD files are available upon request to support your engineering team.
